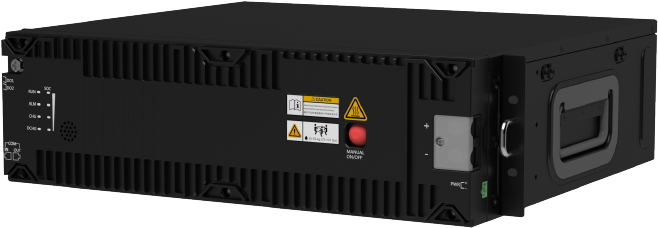

he ESM-48100A7 is an intelligent energy storage unit from Huawei that works with the

Huawei telecom power system to enable a number of intelligent features and anti-theft functions.

Key Features and Collaboration

•

  Intelligent Features: The unit offers intelligent detection, SOC & SOH management (SOH requires the NetEco license), simplified O&M, and self-management.
•

  Intelligent Collaboration: When working with the intelligent power system, it can realize features such as intelligent peak shaving, intelligent peak staggering, intelligent voltage boosting, and intelligent hybrid use. With an intelligent management system, it can enable cloud-based features like cloud peak shaving and cloud hybrid use.
•

  Anti-theft: It features an intelligent software anti-theft design, which includes GPS, an intelligent software lock, displacement lock, and a buzzer alarm. Note that the GPS function relies on an IoT module and a license , and the software lock, displacement lock, and buzzer alarm require specific connections or licenses to activate.
•

  Adaptability: It can be connected in parallel with lead-acid battery strings to reuse existing batteries , and it features different charging voltages adaptability.

Specifications Highlights

•

  Cathode Material: LiFePO4​
•

  Nominal Capacity: 100 Ah @ 0.2C, 35∘C
•

  Nominal Voltage: 48 Vdc
•

  Cycle Life: 6000 cycles @0.5C, 85% DOD, 35∘C
•

  Design Life: 15 years
•

  Maximum Discharge Power: 4800W
•

  Dimensions (W×D×H): $442mm\times 396mm\times 130mm$ (excluding mounting ear)
