Overview
The ETP23036-C6A1 is a high-efficiency, uninterruptible embedded power system that supports AC, DC, and solar power inputs. It delivers stable three-phase four-wire AC output for equipment rooms and remote sites. With a modular hardware design, it supports hot swapping, N+1 backup, and AC bypass, making it ideal for scalable and critical power environments.
Key Features
-
Multiple Input Modes:
-
Supports AC, DC, and solar power input.
-
-
Reliable Performance:
-
N+1 backup
-
Hot-swappable modules
-
Flexible capacity expansion with modular structure
-
-
High Power Density:
-
36kVA output in a compact 6U height
-
-
Standardized Design:
-
Easily deployable in standard 19-inch racks
-
Suitable for a wide range of site environments
-
-
Intelligent Energy Management:
-
Smart scheduling via iGrid, iDiesel, and iSolar
-
Boosts site energy efficiency and power reliability
-
Enables online remote O&M, reducing site visits and operational costs
-

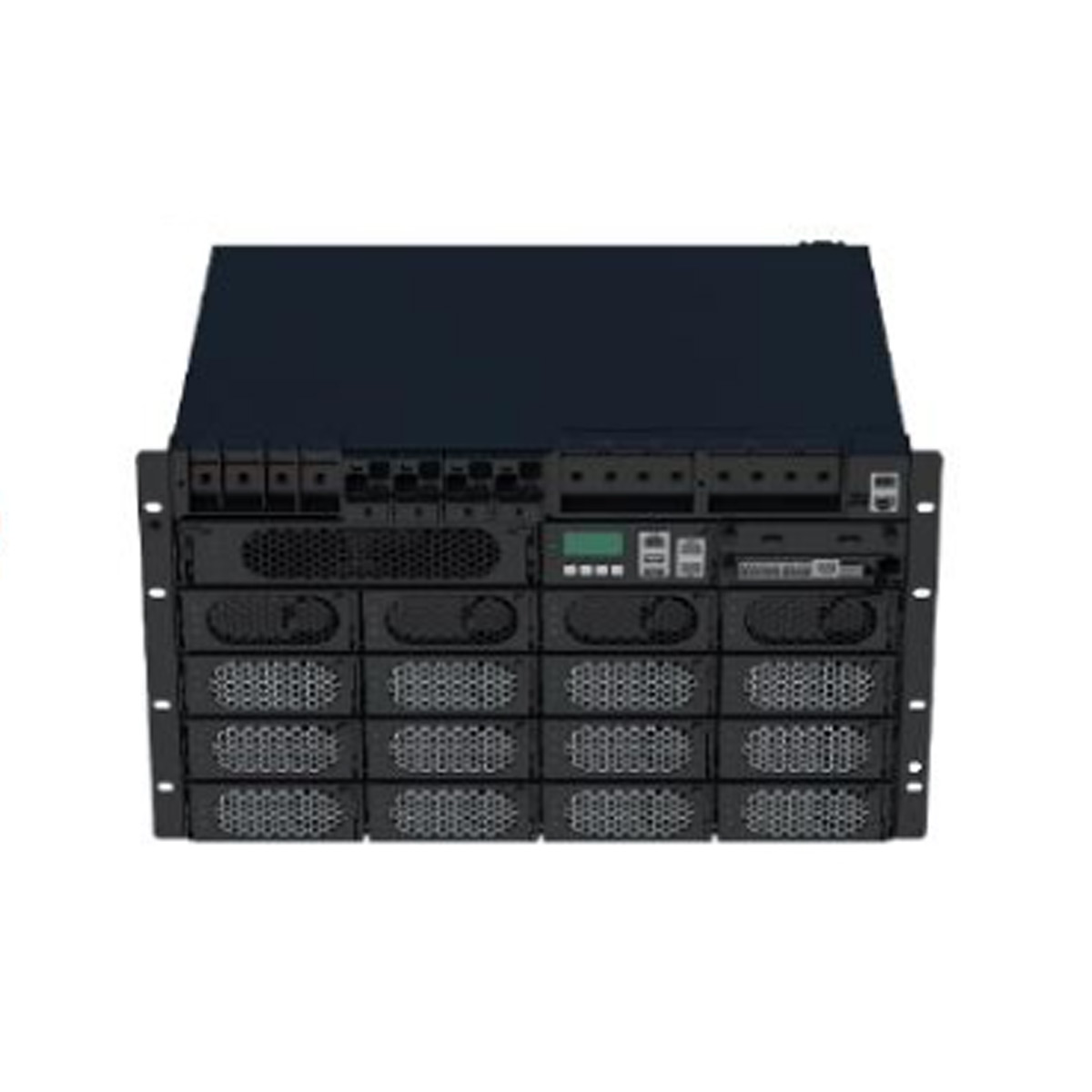

Power Subrack Components (ETP23036-C6A1)
| Ref No. | Component | Description |
|---|---|---|
| (1) | AC Output Circuit Breakers | Protects outgoing AC lines |
| (2) | AC Input Wiring Terminals | Input connections for AC power |
| (3) | Bypass Module Space | Reserved for optional AC bypass |
| (4) | Rectifier Slot | Supports S4875G6, M48500N1, M48500N2, iDCDU100D1 modules |
| (5) | Ground Screw | For grounding the system |
| (6) | Inverter Slot | Supports inverter modules (same as rectifier slot) |
| (7) | SMU02C | System Management Unit |
| (8) | UIM05B1 | User Interface Module |
| (9) | GIM Slot | Space for communications expansion module |
| (10) | CAN0/120Ω | Communication port with termination |
| (11) | CAN0/DO | Digital output communication port |
| (12) | Power Indicator | Shows power status |
| (13) | Fault Indicator | Shows system fault alerts |
| (14) | DC Wiring Terminals | For DC output wiring |
